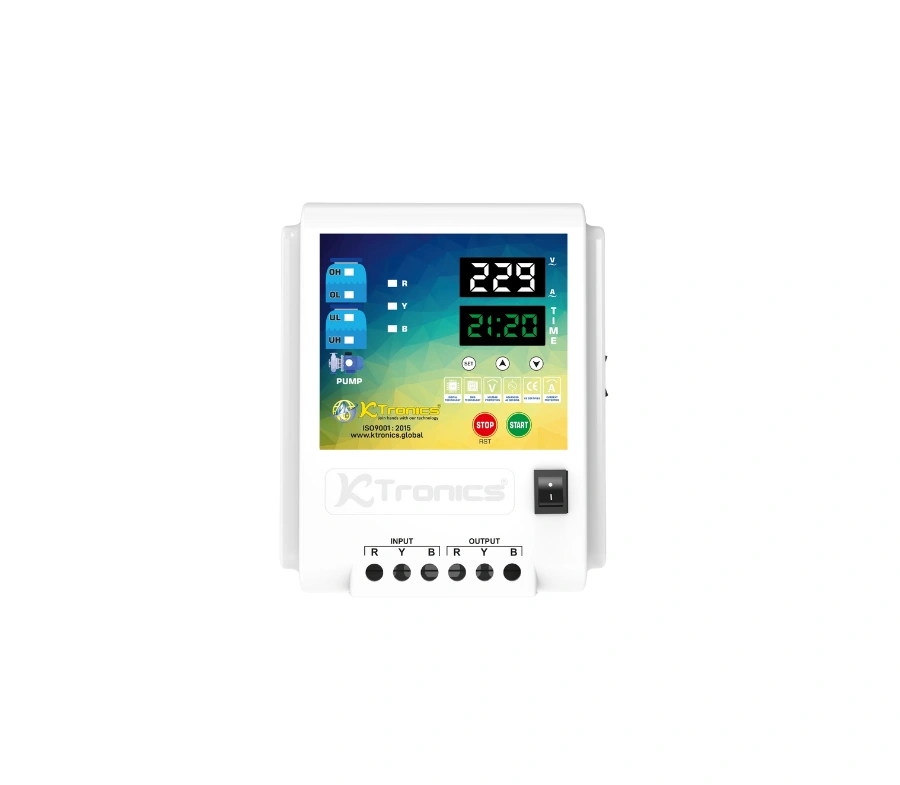

TPDS-WiFi-RTCM: Smart 3-Phase Motor Starter with Real-Time Clock & Water Level Controller
Our Services
TPDS-WiFi-RTCM

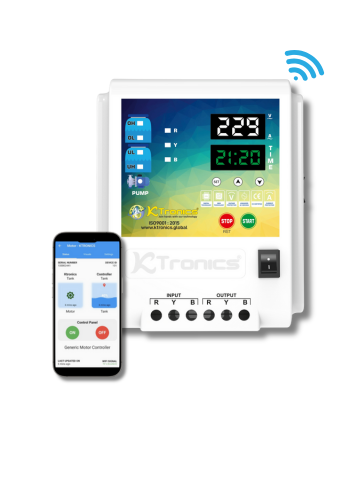

Ktronics is specifically designed for three-phase motors. TPDS-RTCM is a cutting-edge, Wi-Fi-enabled water level controller. Easily connect with the “Ktronics Tank Monitor” Android app, delivering farmers and users the power to monitor and control their water pumps remotely via their smartphones. Multiple users can install the app to access real-time water levels and motor levels, improving accessibility and management.
Key Features
Real-Time Clock (RTC) Scheduling
It permits users to set up to 16 ON/OFF cycles per day. Ktronics product users can enable precise control over motor position based on time.
Remote Monitoring & Control
You can monitor tank water levels and control the motor remotely via the “Ktronics Tank Monitor” Android app, available from anywhere with an internet connection.
Flexible Sensor Connectivity
Our product supports both wired local detectors and remote detectors linked through a cloud server, making it ideal for tanks found far from the motor.
Motor Protection System
It contains safeguards for three-phase motors against overload, dry run, and phase loss, stopping potential damage and providing longevity.
Cyclic Timer:
It contains elements to build a cyclic timer that permits users to set periodic motor function intervals, optimizing water distribution.
Current Monitoring
It constantly monitors the current drawn by the motor. Users can adjust the low and high current stages to prevent harm. The system automatically turns off the motor in case of overcurrent, undercurrent (dry run), or phase loss.
Tripping Alerts
Our product displays the reason for motor shutdown along with the tripping current, helping in quick diagnostics.
Off Timer
It contains an off timer that automatically turns off the motor after a set time, saving energy and stopping overflows.
Water Level Sensors
Other sensors connected to overhead or underground tanks. So it automatically turns off the motor when the tank is full.
Specifications:
Load Capacity: Up to 40A, 415V AC
Motor Compatibility: It is suitable for motors up to 7.5 HP
Input/Output: RYB Input & RYB Output
Protection Features: High & low voltage protection, overload protector, short circuit security
Display: Digital volt and ampere meters
Control Modes: The auto and manual modes with a bypass option
Timers: Off timer, on delay, off delay, and cyclic timer
Installation & Compatibility:
TPDS-RTCM is designed to be connected to existing motor starters. It allows the motor load to pass via the provided current transformer (CT) for precise current sensing. The complete setup guarantees comprehensive monitoring and security of the motor.
Ideal Applications:
Agricultural Use
We ensure efficient water management in farms, controlling overflow and dry run systems.
Commercial Establishments
Our product is suitable for hotels, resorts, and offices, delivering reliable water supply management.
Industrial Applications
It facilitates automatic water distribution in factories and facilities, optimizing resource usage.
With its comprehensive features and user-friendly interface, Ktronics Product TPDS-RTCM offers a decisive solution for modern water level control and motor protection.
