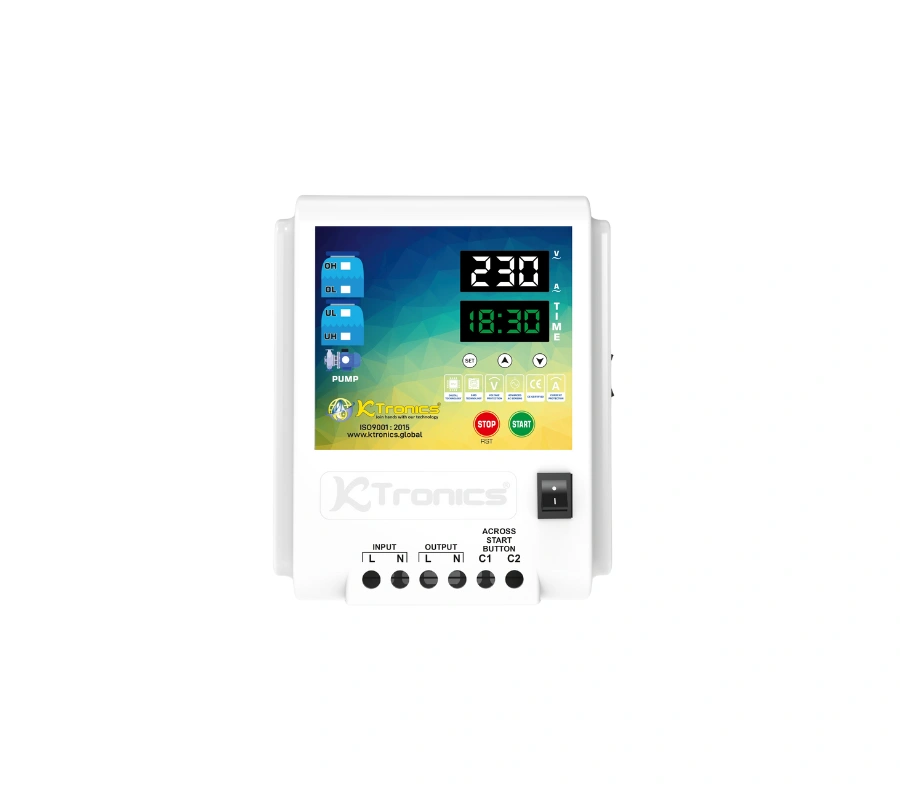

DWLC-WiFi RTC: Smart Water Level Controller with Real-Time Clock
Our Services
WiFi RTC
The DWLC-WiFi RTC is a cutting-edge, fully automated water level controller developed for single-phase motors. We blended with the “Ktronics Tank Monitor” Android app. It allows users to find tank water levels and motor status through a Wi-Fi connection. The huge benefits of multiple users can install the app to access real-time data and enhance convenience and management.
Features
Real-Time Clock (RTC)
We are provided with a built-in RTC. The controller enables users to set up to 16 ON/OFF cycles per day, supplying precise scheduling for motor function.
Remote Monitoring & Control

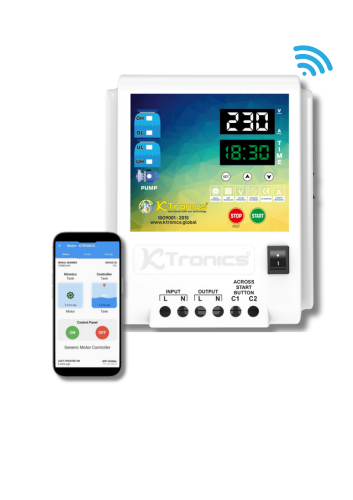

You can easily monitor and control the water level and motor status remotely through the “Ktronics Tank Monitor” Android app. Ktronics products are effortlessly accessible from anywhere with an internet connection.
Flexible Sensor Connectivity
Ktronics' product will support both wired local sensors and remote sensors attached via a cloud server, making it ideal for tanks located far from the motor.
Motor Protection System
Our aids prevent potential damage and ensure longevity by safeguarding the motor against overload, dry run, and single-phase conditions.
Automatic Motor Operation
The automatic system starts the motor based on preset real-time schedules and stops when the tank is full or after the set-off time, whichever happens first.
Current Monitoring & Protection
It constantly monitors the current drawn by the motor. It helps users easily adjust low and high current settings to prevent damage. The system turns off the motor in case of overcurrent, undercurrent (dry run), or phase loss.
Tripping Alerts
It shows the reason for motor shutdown along with the tripping current, helping in quick diagnostics.
Off Timer
It contains an off-timer that automatically turns off the motor after a set duration, transferring energy and preventing overflows.
Water Level Sensors
They automatically turn off the motor when the tank is full. Additional sensors can be connected to overhead or underground tanks.
Specifications:
Load Capacity
30–40A, 230V AC
Motor Compatibility
It is suitable for single-phase motors up to 5 HP
Input/Output: Input
R, Y, B; Output: R, Y, B motor
Protection Features
It contains overload protection, dry run protection, and single-phase protection
Display
Digital voltmeter and ammeter
Control Modes
Auto and manual modes
Timers
Cyclic timer, on delay and off delay timers, off timer products
Indications
Motor on the indication, RYB phase indication, auto, and manual switch indications
Best Installation & Compatibility
The DWLC-WiFi RTC is designed to be connected to existing motor starters. It allows the motor load to pass via the provided current transformer (CT) for precise current sensing. This setup ensures wide monitoring and safety of the motor.
Ideal Applications
Residential Use:
It guarantees efficient water management in homes, containing overflow and dry run scenarios.
Commercial Establishments:
It is suitable for hotels, resorts, and offices, delivering dependable water supply management.
Industrial Applications:
We facilitate automated water allocation in factories and large buildings, optimizing aid usage.
With its extensive features and user-friendly interface, the DWLC-WiFi RTC presents an efficient solution for modern water level management and motor safety.
